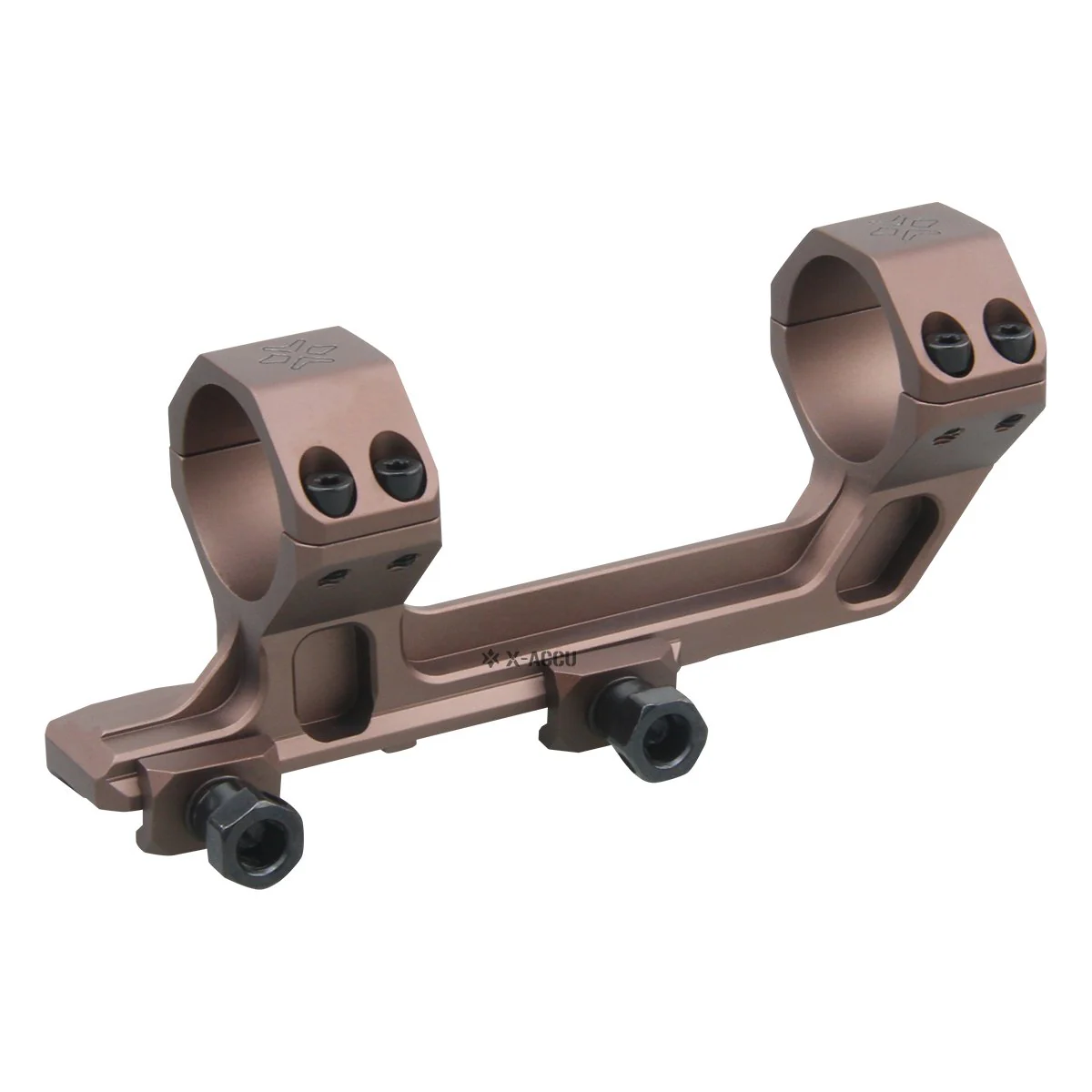

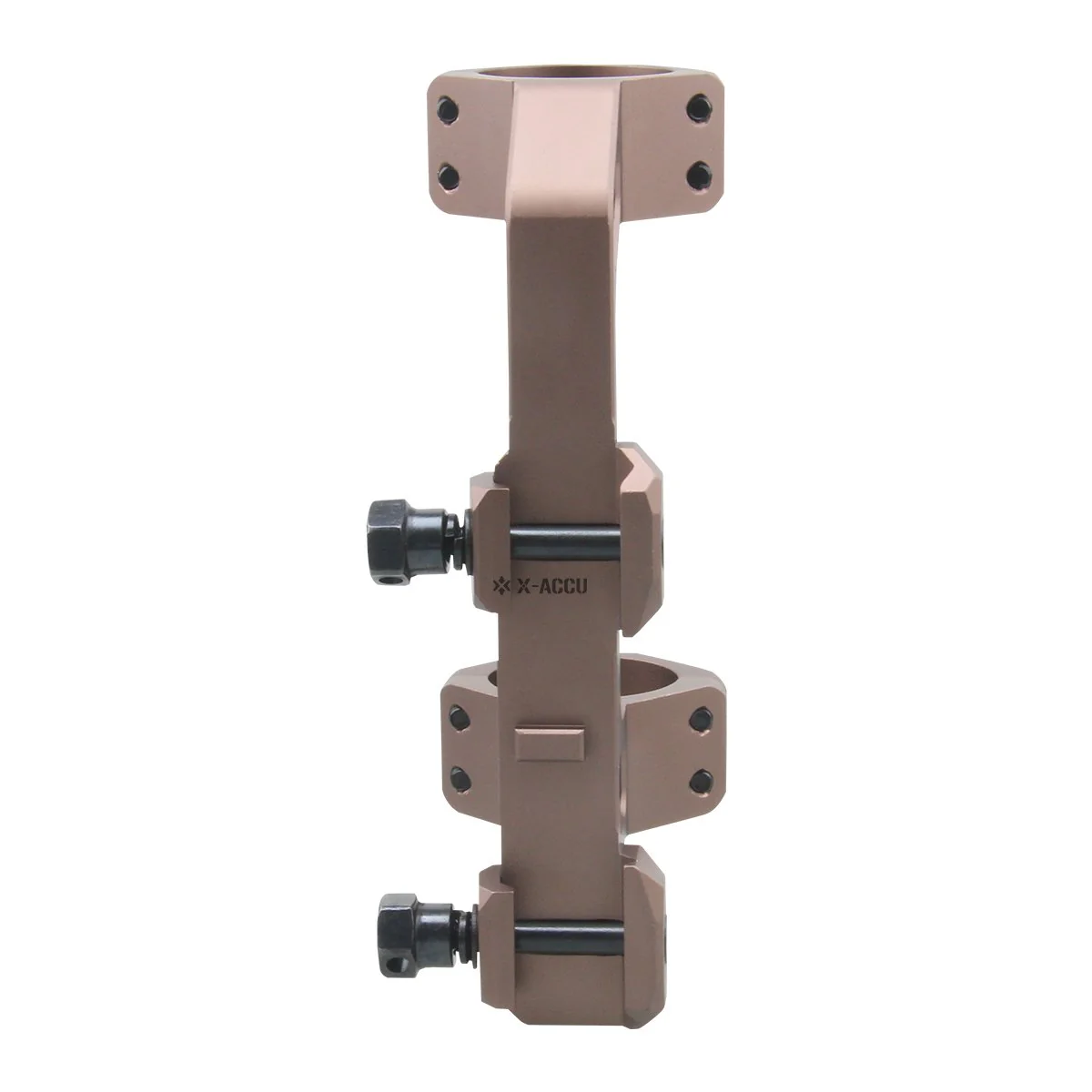

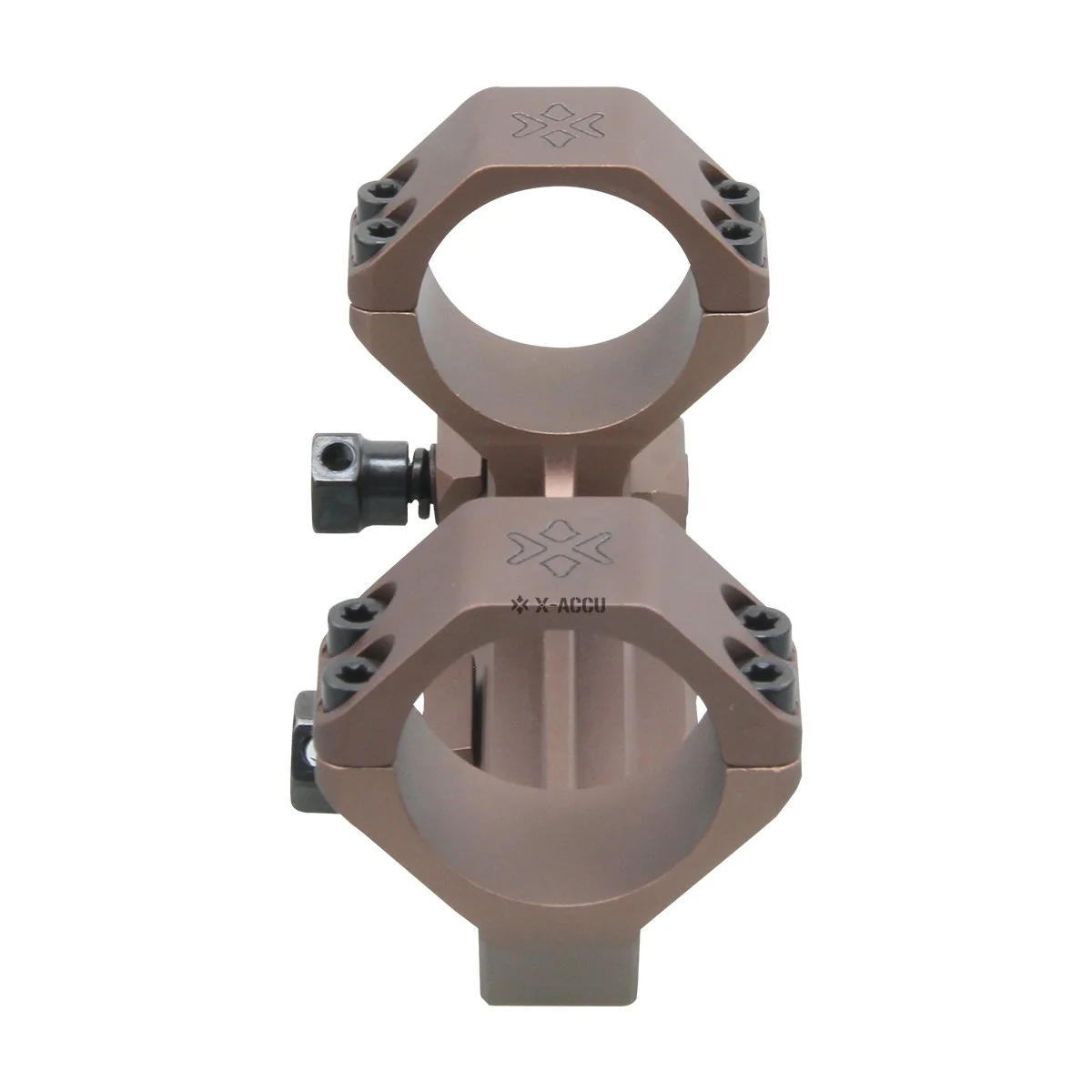

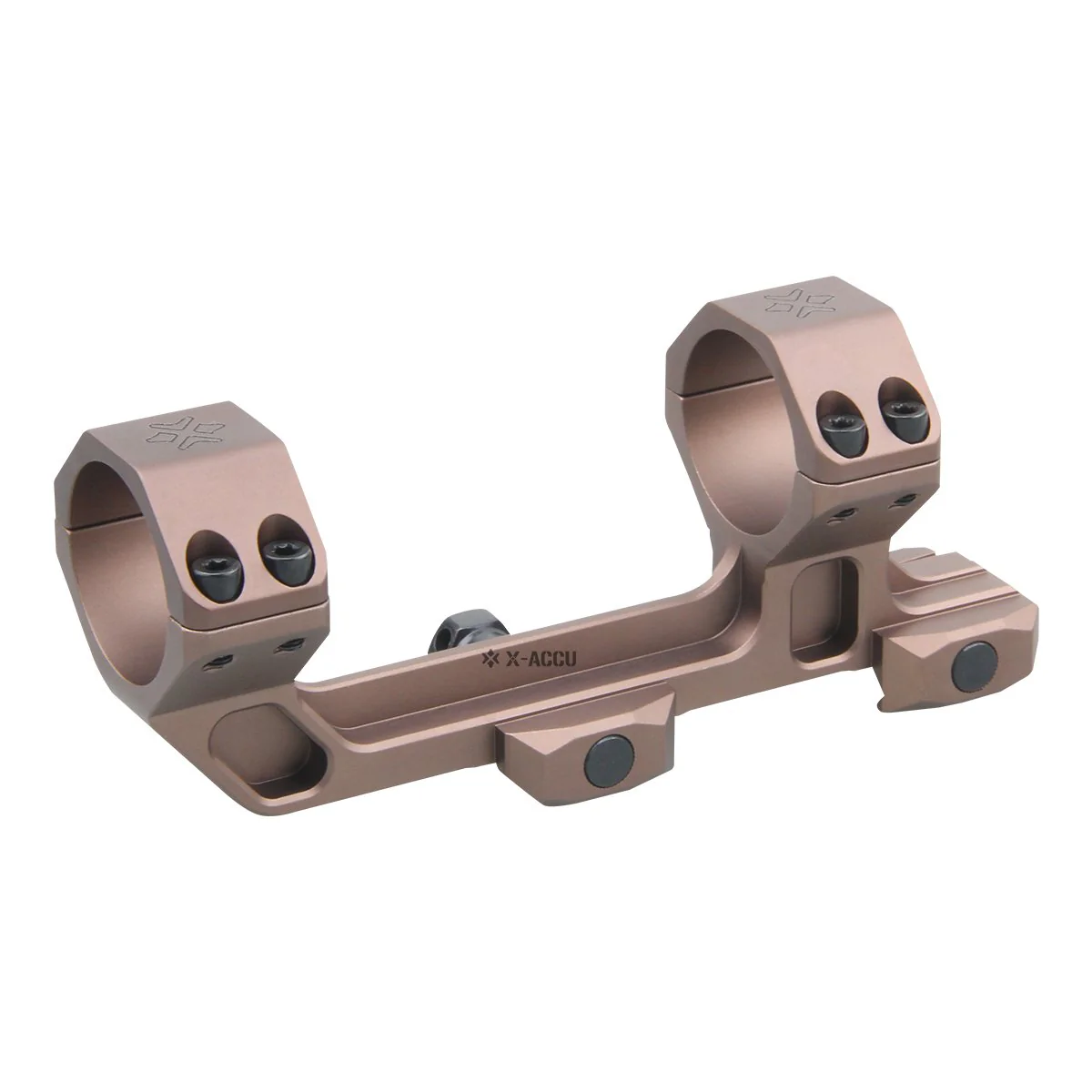

20MOA 30mm 1-Piece Extended Picatinny AR Mount Coyote FDE

Feature

20 MOA Type, AR Platform Tactical Picatinny Mount, Four Screws Per Ring

38mm 1.5" Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined

Light Weight, 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar



Specification

Ring Diameter: 30mm

Overall Length: 139m / 5.5"

Overall Height: 62mm / 2.4"

Mount Length: 120mm / 4.7"

Ring Width: 46mm / 1.8"

Central Height: 38mm / 1.5", bottom to center

Ring Length: 21mm / 0.8"

Gap Length: 73mm / 2.9"

Material: 6061-T6 aluminum alloy

Weight: 155g / 5.5oz

Mount: 1913 Picatinny

Finish: Coyote FDE matte

Screws per ring: 4

High-durability aluminum alloy in matte finish

Do not use over 18 inch / pounds of torque on the scope rings' screws

Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail

Designed for hard and rigorous use

With hex key and retail package, hex key can be used to fasten the clamp nuts
